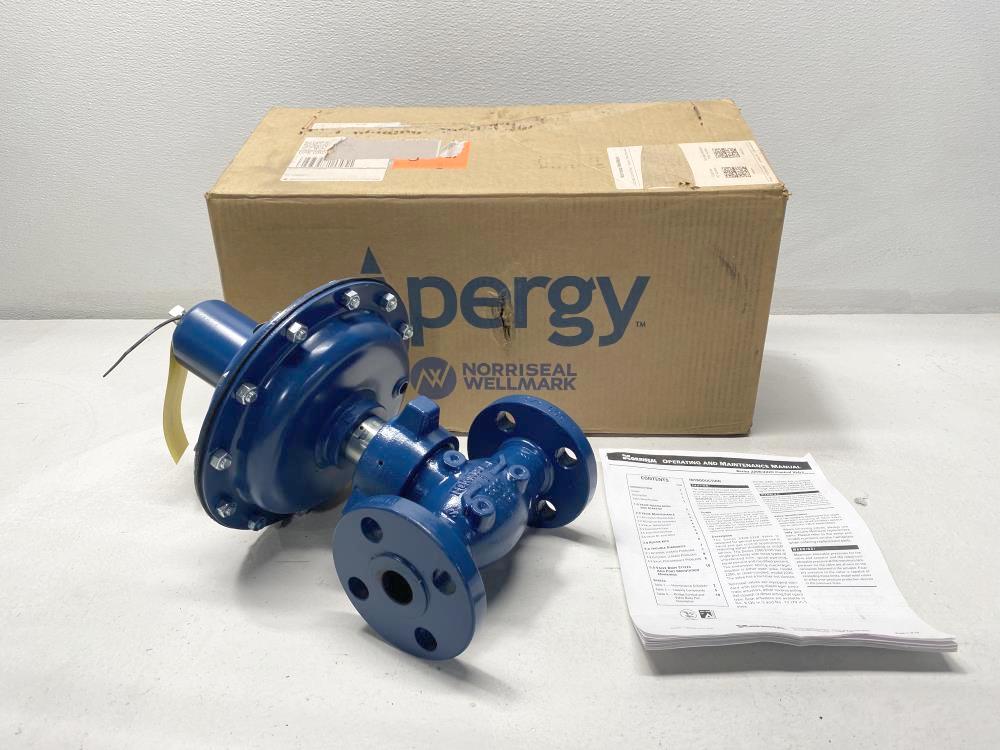

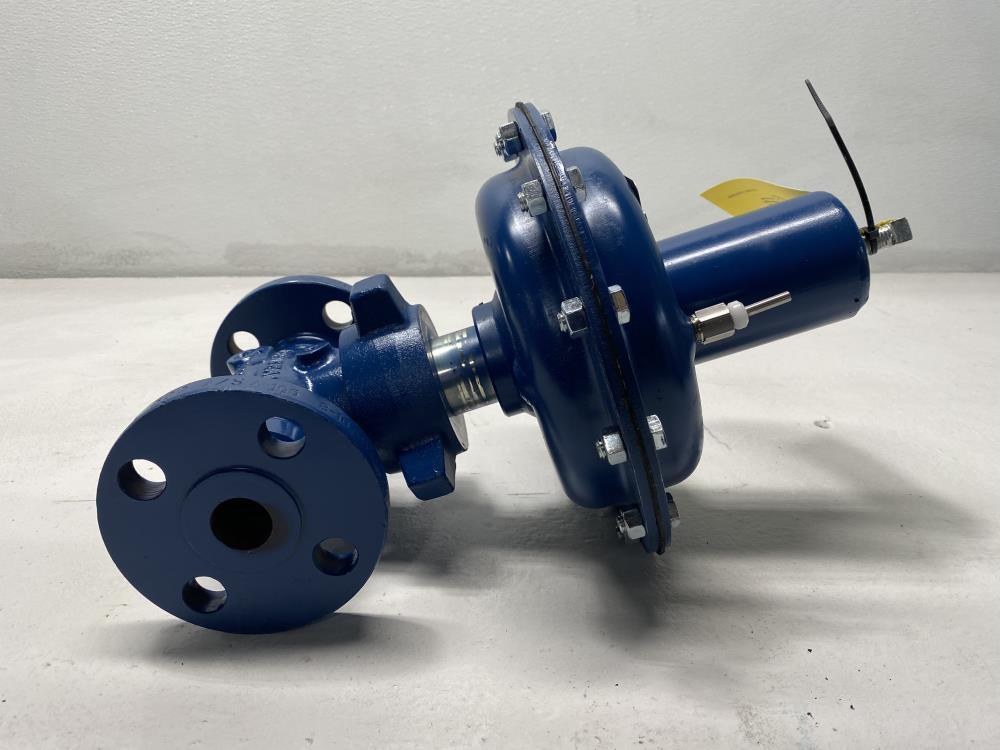

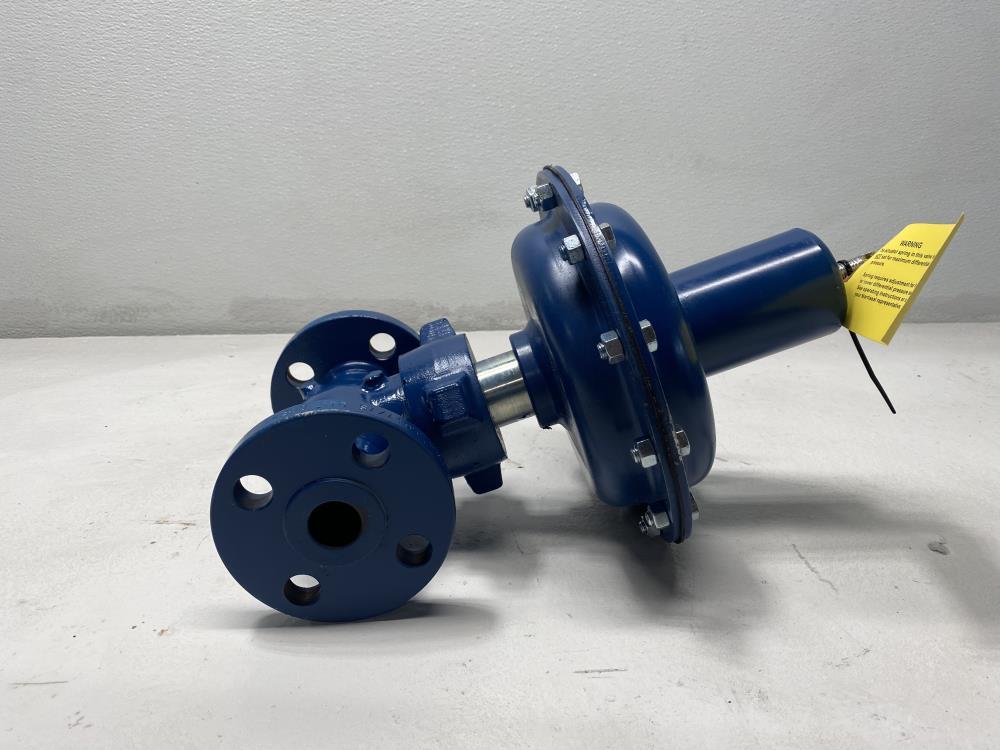

Norriseal 1" 300# Flanged WCC Control Valve, Series 2221, RF-07TGA-9AA

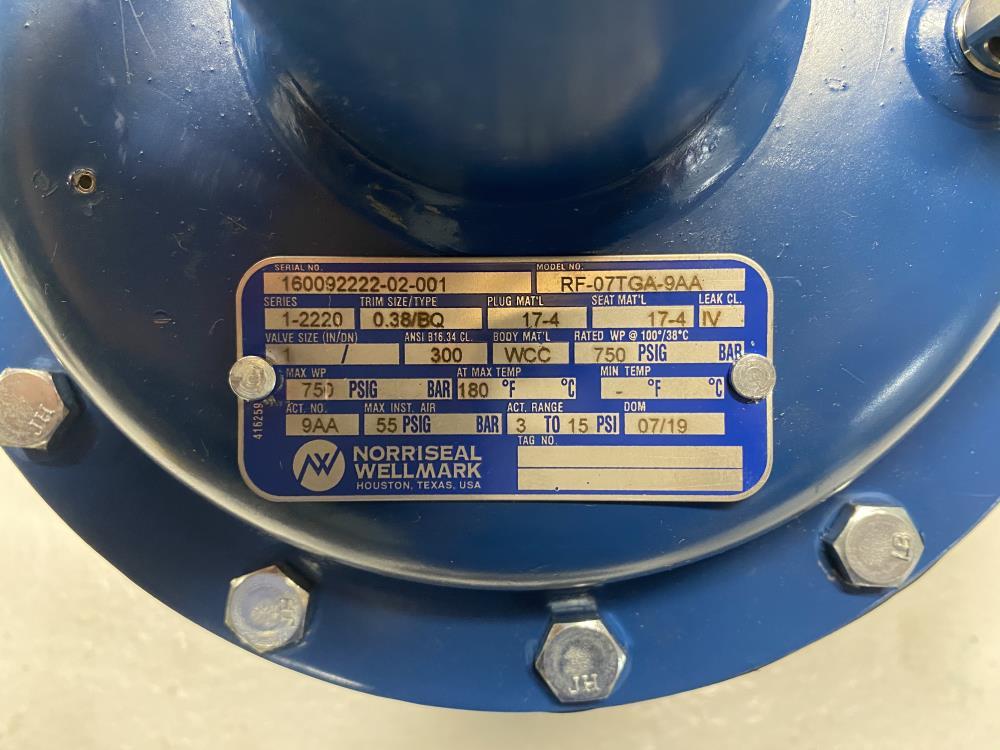

Norriseal 1" 300# Flanged WCC Control Valve, Series 2221, RF-07TGA-9AA Series 2221 Model#: RF-07TGA-9AA Valve Size: 1" ANSI B16.34 CL: 300 Trim Size: 0.38 • Type: BQ Plug Mat'l: 17-4 Seat Mat'l: 17-4 Leak Cl.: IV Body Mat'l: WCC Rated WP 750 PSIG @ 100°/38°C Max WP: 750 PSIG @ 180°F Max Act# 9AA Max Inst. Air: 55 PSIG Act. Range: 3 to 15 PSI
Kategori: Control Valve
Brand: Norriseal valve
Norriseal 1" 300# Flanged WCC Control Valve, Series 2221, RF-07TGA-9AA Series 2221 Model#: RF-07TGA-9AA Valve Size: 1" ANSI B16.34 CL: 300 Trim Size: 0.38 • Type: BQ Plug Mat'l: 17-4 Seat Mat'l: 17-4 Leak Cl.: IV Body Mat'l: WCC Rated WP 750 PSIG @ 100°/38°C Max WP: 750 PSIG @ 180°F Max Act# 9AA Max Inst. Air: 55 PSIG Act. Range: 3 to 15 PSI
